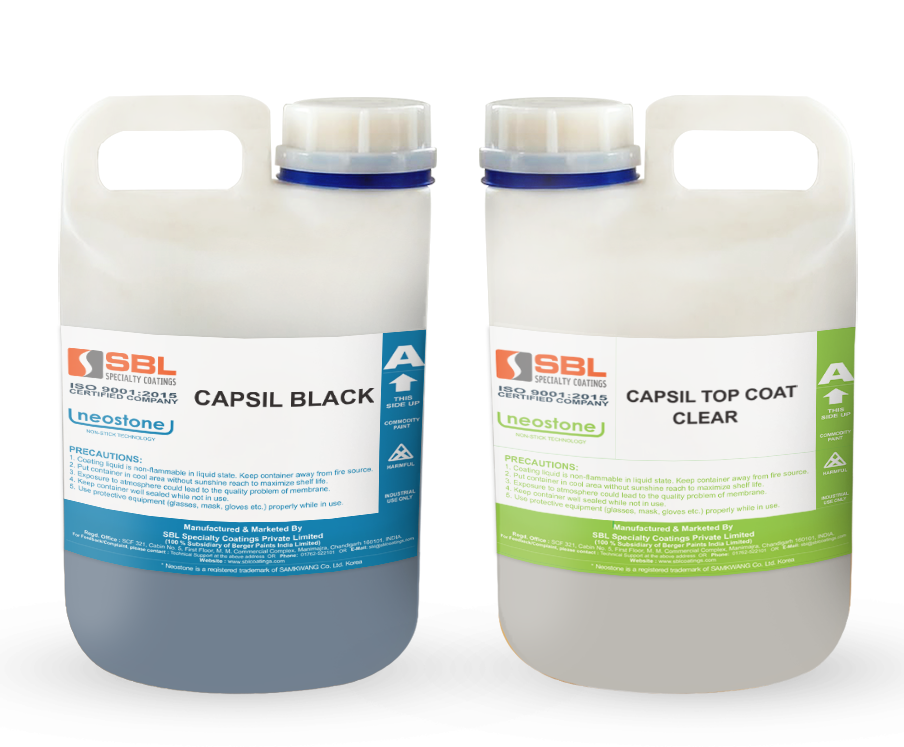

Neostone- Opaque (Base Coat) + Clear (Top Coat)

recommended use

Neostone (Base coat + Top Coat) is an excellent functional ceramic coating with Self Healing, a patented technology in which non-stick layer is restored by itself. Neostone beautiful texture and unique colors do not contain any toxic and heavy metal. Neostone is safe and attractive inorganic ceramic non stick coating.

application guidelines

Coating process for Neostone ceramic coatings is divided into 7 steps. First step is to De-grease the surface. Now do Sand Blasting (60-80 Mesh, Ra: 2.5~3.5 µ m). Clean the surface with Air blow. After cleaning Pre heat the surface (40 ~ 60°C). After Pre - heat apply Base Coat +Top Coat (wet-on-wet) by spraying. Cure the surface for 10 min (@ 280°C ~ 300°C). After curing check for Adhesion. DFT (35~40 µ m), Gloss and NS properties.

IN CAN PROPERTIES

  • Mixing Ratio (Part A : Part B: Part C)65:35:0.4
  • Shelf Life6 Months

APPLICATION PROPERTIES

  • Curing Temperature180°C~300°C

FILM PROPERTIES

  • Abrasion Test2500 Times (With 3M 7447 pad, 1.5kgf, 250times +release egg 2 times /1 cycle)
  • Salt Water Boiling Test70 Hr. (simmer for 3 Hr. 5% NaCl water + release egg 2 times / 1 cycle)
  • Adhesion Test0/50 (1 mm Cross Cut Adhesion test after 15 min. water boiling)
  • Impact TestPaas (ASTM Impact test 300 grams at 30 cm height)
  • Abrasion Resistance Test15000 Cycles (To check number of mg of coated layer removed by 1 kg load with Tabor CS-10 )
  • Easy Cleaning Test - Soil Mixture /Plum Jam / Vegetable Oil10 Cycles (250°C x 30 min. and cleaning)
  • Performance Test- Apple + plum puree / Baconoil + margarine, etc70 Cycles Pass (180°C x 30 min.)
  • Performance Test- Strawberry jam + milk + flour + water20 Cycles Pass (260°C x 15 min.)
  • Performance Test-Mustard sauce / Lemon Juice / Spaghetti sauce / Canola oil5 Cycles Pass (200°C x 1 Hr. or 24 Hr. @ Room Temperature)
  • Performance Test- Burnt sugar /Various foods / Various oil / Stain test10 Cycle Pass (200°C x 1H)
  • Thermal Shock Test20 Cycles (100°C box oven 60 mins heating + release egg 2 times /1 cycle
  • LGA non stick TestLGA Score 1.8 (lower the LGA score better the results)
  • Stain Resistance Test (Chicken wing cooking)10 Cycles

DELIVERY

  • Base Coat Color optionBlack, Ruby Pink, Forest Green, Stellar Black, Ocean Blue
  • Top CoatWater White clear
